Bambu Lab

Lithophane LED Backlight Board Kit (4PCS)

SKU KC010
$1999
$1999

Customers also bought

    Product Description

    Bring your images to life! By combining 3D printing technology with the PLA CMYK Lithophane Bundle, you can effortlessly design and create stunning Lithophane artworks at home. Simply use the Lithophane LED Backlight Board Kit to illuminate your creations and make them truly shine.



    Start creating your lithophane with Make My Lithophane today! Make My Lithophane is also available in Bambu Handy now.





    Bring colors to your lithophane

    pla




    6 Litophane Styles to Choose From



    There are six types of Lithophane available on the Make My Lithophane page. Among them, Mono Lithophane with Frame and Colorful Lithophane are compatible with the Lithophane LED Backlight Board Kit. If you want to bring color to your Lithophane, please choose the Colorful Lithophane with Frame option.


    pla






    Note:  The latest version and portable photo frames are now available on MakerWorld, with updated supporting documents are provided below for download.

    For more details, click here. We welcome everyone's feedback about the model to further improve it.











    Documentation


    2DSpecification3D3D ModelApplication Instruction





    Basic Information

    Number of LEDs 48/pcs
    Connector Model PH2.0 x 2
    Voltage 5V
    Current 2A





      Difference between  CMYK Backlight Board  And This Kit

      Product

      CMYK Backlight Board



      Lithophane LED Backlight Board
      （2PCS）


      Lithophane LED Backlight Board
      （4PCS）
      Size support Single size Single size Multiple sizes supported
      Lithophane Size(including margin) 144 x 108 x 2.7 mm 2PCS：106 x 156 x （2.5-3.2）mm 2PCS：106 x 156 x （2.5-3.2）mm
      OR
      3PCS：156 x 156 x （2.5-3.2）mm
      OR
      4PCS：156 x 207 x（2.5-3.2）mm
      Assemble  Methods One Two Five
      Design Fixed size Modular design
      Dimming function Fixed  Adjustable (long-press dimming)
      Power cable Not included Inclued
      Ideal for Users seeking a straightforward solution Users who require flexibility and customization

      Models Creators Model Links
      xxxxDiablo Cathedral - Detailed Light-Up Miniature
      		 MaKim xxxxDiablo Cathedral - Detailed Light-Up Miniature
       Ozark Mountain Sunset Book Nook
      		 MaKim Ozark Mountain Sunset Book Nook



      In the Box

      Item for Lithophane LED Backlight Board Kit (2PCS) - KC009 Qty

      • LED Backlight Board

      		  2PCS

      • PH2.0 Power Connection Cable

      		 1PCS

      • USB to PH2.0 Power Cable with ON/OFF Switch

      		 1PCS

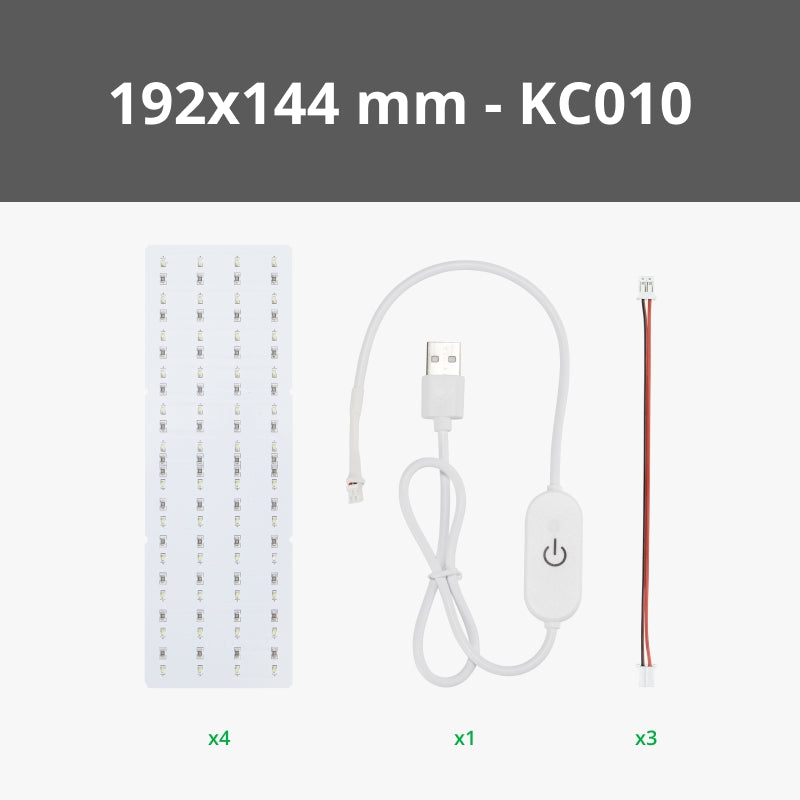

        Item for Lithophane LED Backlight Board Kit (4PCS) - KC010 Qty
        • LED Backlight Board
        		 4PCS

        • PH2.0 Power Connection Cable

        		 3PCS

        • USB to PH2.0 Power Cable with ON/OFF Switch

        		 1PCS





          Considerations



          • Smaller nozzle sizes and lower layer heights are essential to achieve better printing results. We suggest using 0.2mm or 0.4mm nozzle sizes and layer heights between 0.08mm and 0.12mm. If you use other tools to generate the lithophane model, you may need to configure the print profile to optimize the result. Please check CMYK Lithophane Printing Guide on Wiki.

          • Due to the limitations of printing layers and resolution, there may be some color deviation between the actual image and the lithophane prints.

          • To prevent warping, the recommended heated bed temperature is between 45-50℃.
